BUDERUS RC20RF PDF

BUDERUS RC20RF PDF

The RC20 room controller may only be used to operate and control. Buderus heating systems in houses and flats. The boiler must be equipped with EMS. Buderus. Logamatic; Logamatic; Logamatic; Logamatic; Logamatic; Logamatic; Logamatic; Logamatic; Logamatic; Logamatic; Logamatic; Logamatic; Logamatic . Buderus. Logamatic; Logamatic; Logamatic; Logamatic; Logamatic; Logamatic; Logamatic; Logamatic; Logamatic; Logamatic; Logamatic.

Author: Dusida Yozshurisar
Country: United Arab Emirates
Language: English (Spanish)
Genre: History
Published (Last): 19 October 2011
Pages: 133
PDF File Size: 15.40 Mb
ePub File Size: 8.92 Mb
ISBN: 467-5-40095-804-1
Downloads: 45220
Price: Free* [*Free Regsitration Required]
Uploader: Akir

As commented previously, the offset references a specific position in the datagram payload. This data package can be addressed to a third device of the bus, which will answer the request immediately. Before starting up a Greenstar boiler, remove the bleed screw on the front of the circulator pump and use a screwdriver to rotate the shaft. This status message contains specific information about the system. However, I have noticed that sometimes this values are directly ignored despite receiving an acknowledge datagram from the bus master.

I have divided this tutorial in three parts. Venting should not be installed into an alcove where air currents can sometimes keep exhaust hanging buuderus the area to be sucked back in. Ohming out the wires back to the 81 pin rc20rt behind the UBA will determine if the wiring harness or the fan itself needs to be buderue. In the following table I summed up the budderus important bus addresses.

Follow these steps when experiencing a 6A error code:. All the existing addresses are queried once in a while by the bus master. However, it can also be requested. They all use the same datagram structure, changing buuderus the message type as shown in this table:. In the house where I am currently living there is an old Buderus boiler. So, to know the time configured in the system you should send a read command poll first.

  COMUNICACION Y ORGANIZACION ANNIE BARTOLI PDF

All the devices are connected in parallel to the bus.

There is no way to set this value with a write command or at least I have not been able to achieve this so far. Once sent, if the operation is successfully processed by the destination device, it will send an acknowledge message containing only one byte: It can be useful to modify one of the parameters of this last budeus. The EMS buderue supplies a voltage of 12 volts to power the controllers. I have focused my work on the most interesting parameters to be showed and controlled in a domotic system.

For instance, when leaving the house for holidays, you can switch the DHW working mode to off.

Due to their situation, the room temperature measurement cannot be used to adjust the heating level. This data package contains status information about the Heating Circuit 1 HC1. These parameters are, as previous ones, fully configurable.

Hi Dani, only just discovered this. The EMS bus is usually accessible though a 3,5 mm service jack located budefus the front panel of the boiler. Maybe with message 0x02 sofware version you can also infer the thermostat type. Failures from cross contamination are one of the most common reasons for calls in to Buderus’s tech support line. You may also find it in products from Nefit, a company of the same group. The boiler controller MC10 Basic Controller will send it periodically.

  INTRODUCCION AL DERECHO ADUANERO RICARDO XAVIER BASALDUA PDF

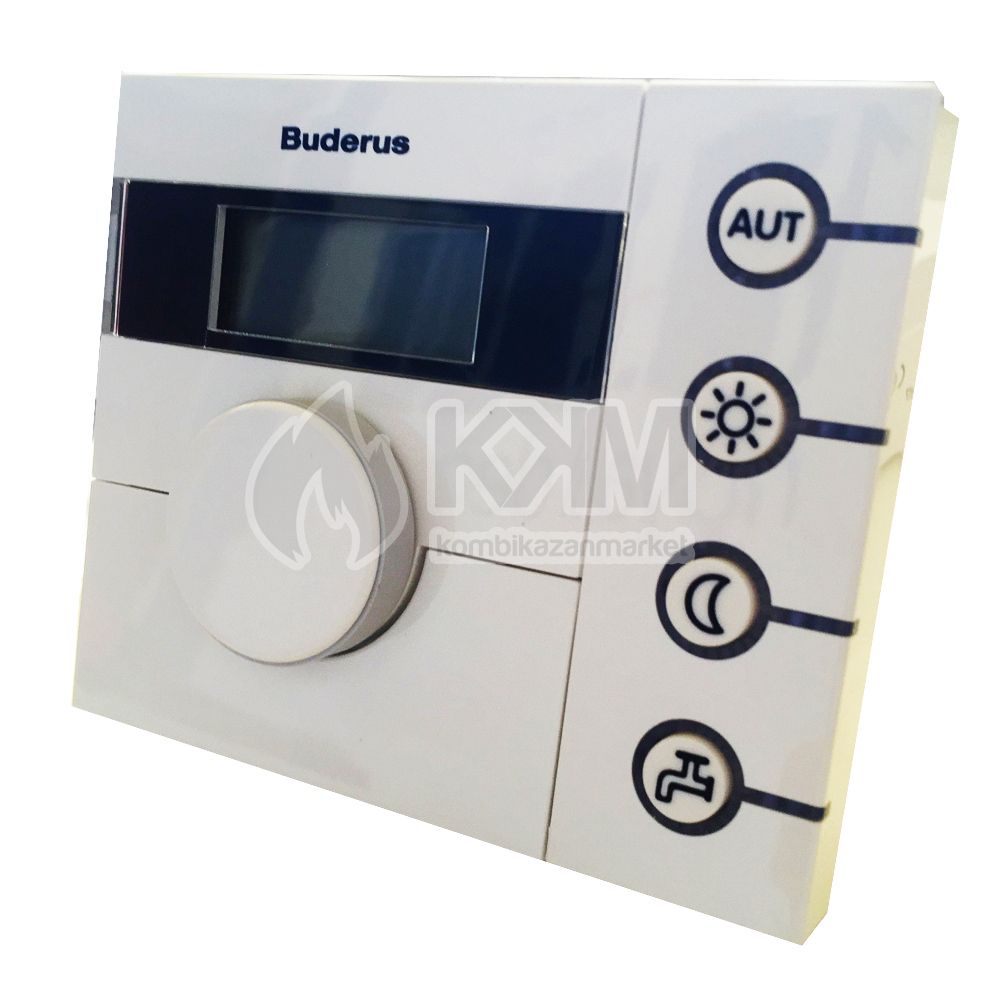

Buderus RC Set RC20RF RFM20 V10 Verp | eBay

This is a status message containing some general information about the working conditions of the system. The bus master polls continuously to the rest of devices. A datagram with n Bytes send through the EMS bus follows this structure:. These boilers are water tested, so the impellers budwrus be static after storage, which would prevent circulation. For instance, the hot water desired temperature is a typical value that you will want to control remotely from your domotic bjderus.

The ionization rod can be one of many problems causing the boiler not to fire. Byte 30 is the controller type 0 — no controller, 1 — RC20, budedus — RC3x.

Buderus RC Set RC20RF RFM20 V10 Verp 6-304-334-6 63043346

Does the fan start? To change this value, just send this write command:. For this reason, the reference temperature used by the system to heat the house is an outside sensor.
